What’s a Kafka Segment?

The hierarchy of data in Kafka is:

• topic

  • partition(s)

    • replica(s)

      • segment(s)

The basic storage unit in Kafka is a replica.
The basic storage unit in the OS is a file.

A broker stores a replica of a partition and said replica is simply a bunch of files on the filesystem.

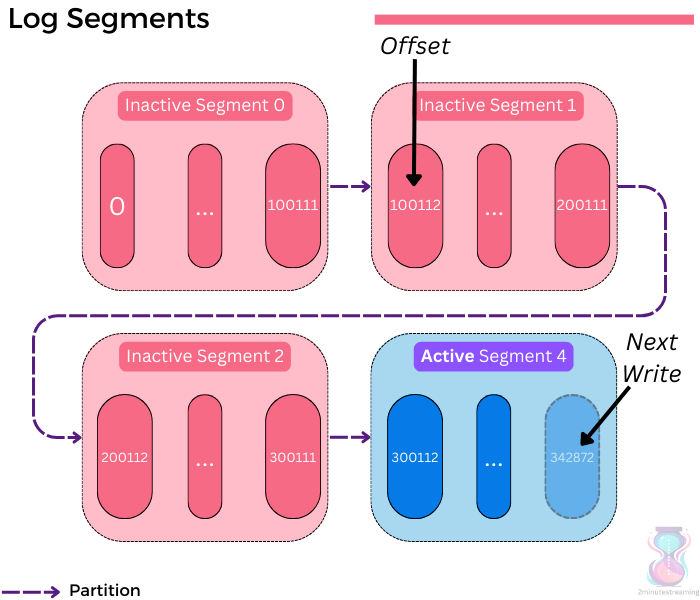

At any given time, there is only one “active” segment. The active segment is the one where new records are written to.

Combined together in consecutive order, all the files form the full partition.

How Large is a Segment?

Depends on when we roll them.

It is configurable. You can limit size based on time or bytes.

Static Per-Broker Configs:

• log.segment.bytes - the maximum size (in bytes) of a single segment (file). Defaults to 1GB.

• log.segment.ms - the duration (in milliseconds) from file creation that Kafka will wait until it closes the segment, only in case log.segment.bytes is not reached before that.

These configs represent the default topic configuration.
They are dynamic too, i.e updatable via kafka-configs.sh without a restart.

Dynamic Per-Topic Configs:

You can re-configure these settings for any specific topic.

The convention is that broker-level topic configurations are prefixed with log..
To get the topic-level one, simply omit the prefix:

• segment.bytes

• segment.ms

🚨Gotcha: Kafka File Descriptors

In Linux, file descriptors (also called file handles) are used to reference open files, sockets, and other I/O resources. Kafka uses a large number of open file descriptors.

This is because Kafka keeps open file handles to inactive segments - every segment in every partition is an open file.

Configure your OS to allow for that. (/proc/sys/fs/file-max (NR_FILES) in Linux for the system-wide limit)

Too Many File Handles?

In theory, having many open file handles can lead to more resource usage and performance.

In practice, I wasn’t able to find any resource on the web that had someone suffer from that.

An open file descriptor takes around 1KB of extra memory in the Linux kernel, hence having as many as 1 million files (2^{^20} ) would only use 1GB of RAM.

Tradeoffs - What Value to Configure?

The fundamental trade-off between segment size is write latency vs. retention.

• small segment → larger write latency (due to having to roll a new segment and direct the write there, instead of simply writing to the file)

• large segment → more disk usage (more data in active segments not considered for retention)

…

Meta

Thanks for reading! There are extra details we didn’t have space to share - like index files & the fact that filling them up results in a segment roll.
